Fully Synthetic Cutting Fluid

【Product Performance】

CUT-525A Universal High-Quality Fully Synthetic Cutting Fluid is a high-quality universal synthetic metalworking fluid specially designed for multi-purpose use. It can process both black metals and non-ferrous metals (such as cast iron, carbon steel, 45# steel, stainless steel, copper, aluminum alloys 1-7 series). Formulated with high-quality imported additives, it possesses excellent lubrication and rust prevention properties, significantly extending the lifespan of cutting tools and eliminating the hassle of frequent oil changes. Workpieces processed with this fluid require no cleaning, reducing labor costs substantially. It has low odor, low foaming, skin-friendly, environmentally friendly, and easy to discharge. Using this product can solve many of your worries!

【product parameters】

【usage method】

1. Before using this product, clean the machine, tank, or reservoir thoroughly. It is strictly prohibited to mix with other oils. Stir evenly before use.

2. Dilution Ratio: Concentrate : Water = 1 : (1-20).

3. The working fluid concentration should not be lower than 5. Adjust the working fluid concentration appropriately according to different processing techniques, materials, and rust prevention requirements. For example: for processing stainless steel, the dilution ratio of concentrate to water should be 1 : (1-10), and for processing copper or aluminum alloys, the dilution ratio should be 1 : (1-20).

4.  Note: For rust prevention for 3 days, water can be added at a ratio of 10 times the initial volume. For rust prevention for 7 days, water can be added at a ratio of 5-7 times the initial volume. For rust prevention for 10-15 days, water can be added at a ratio of 3-5 times the initial volume.

【packaging specifications】

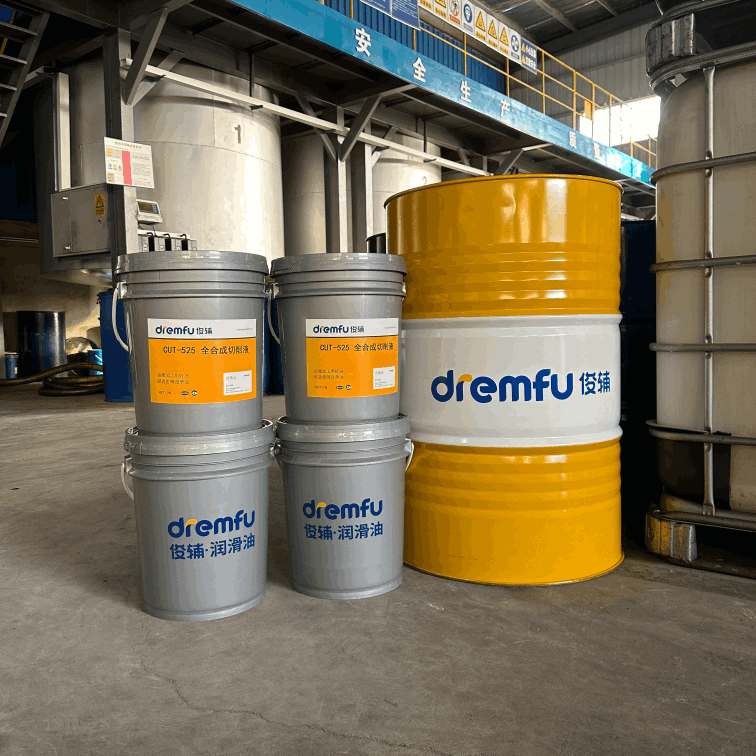

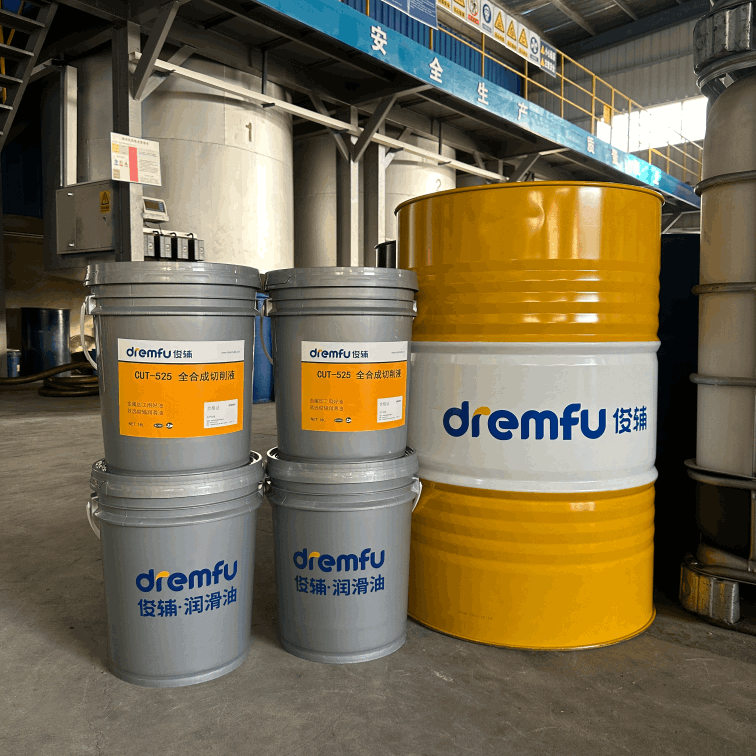

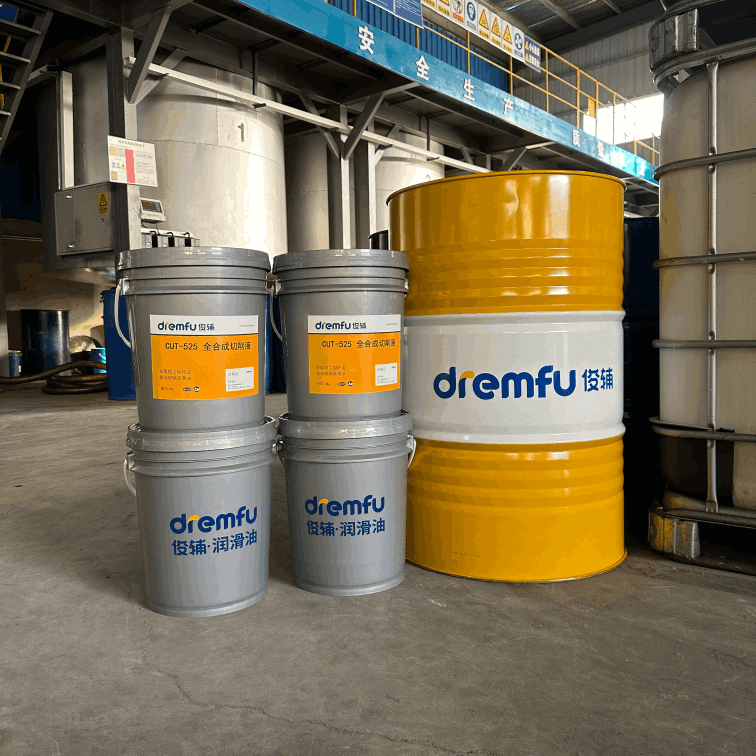

18L per plastic drum, 200L per large iron drum

【Precautions】

1. Due to different production batches, there may be slight color variations in the Cutting Fluid, which do not affect its normal use.

2. This product should be stored in a dry, cool, and well-ventilated warehouse, and exposure to direct sunlight and rain should be avoided during storage and transportation.

Universal High-Quality Fully Synthetic Cutting Fluid Cut-525A .pdf

Fully Synthetic Cutting Fluid is suitable for processing types

Cutting methods: Different processes such as turning, milling, drilling, tapping, and grinding have different requirements for lubrication and cooling of cutting fluids.

Processing materials: Different metals (such as aluminum, stainless steel, titanium alloy, and carbon steel) have different requirements for cutting fluids.

CNC processing requirements: High-speed and high-precision processing have higher requirements for cooling and lubrication, and a suitable formula needs to be selected.

Main performance indicators of Fully Synthetic Cutting Fluid

Lubricity

Function: Reduce friction between tool and workpiece, reduce wear, improve machining accuracy and surface finish.

Measurement indicators:

Coefficient of Friction

Extreme Pressure (EP)

Cooling Efficiency

Function: Efficient heat dissipation, prevent damage or deformation of workpiece and tool due to high temperature, and improve machining stability.

Measurement indicators:

Thermal Conductivity

Specific Heat Capacity

Evaporation Rate

Corrosion & Rust Protection

Function: Prevent rust on workpiece and machine tool surface during machining and storage.

Measurement indicators:

Salt Spray Test (ASTM B117)

Cast Iron Chip Test

pH value (usually between 8.5-9.5 to prevent corrosion)

Foam Resistance

Function: In high-pressure cooling systems, low-foam formulas can prevent foam from affecting processing stability and cooling effects.

Measurement indicators:

Foam Volume Test (ASTM D892)

Defoaming Time

Detergency & Cleanliness

Function: Flush metal debris and chips, improve the cleanliness of workpieces and machine tools, and reduce the impact of residues.

Measurement indicators:

Emulsification Efficiency

Filtration Performance

Bio-stability

Function: Prevent the growth of bacteria and mold, extend the life of cutting fluids, and reduce odor and maintenance costs.

Measurement indicators:

Bacterial & Fungal Resistance

Microbial Load

Compatibility

Function: Ensure that the cutting fluid does not corrode machine tool parts (such as seals, plastic parts, coatings, etc.).

Measurement indicators:

Material Compatibility Test

Seal Swelling Test

Dilution Ratio

Function: Cutting fluid usually needs to be mixed with water, and different processes require different concentrations.

Measurement indicators:

Typical range: 3%-10% (usually 3%-5% for grinding, 5%-10% for cutting)
